  1. Cable Ties

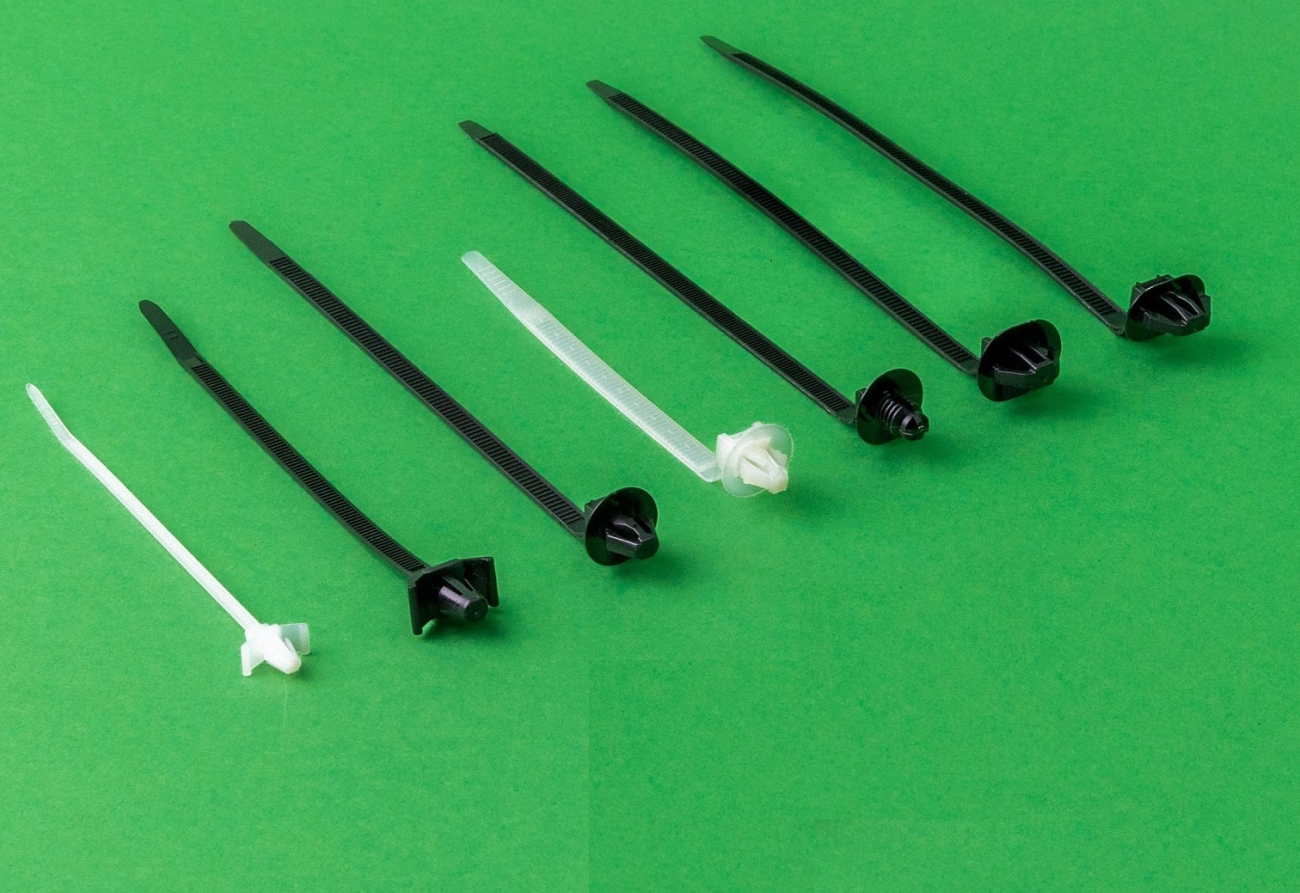

Push Mount Cable Tie

Push Mount Cable Tie

It is popular applied in Automotive industry.
It is matched with the base plate hole, after inserting the head, it can be tightened with the Zip Tie.
/
DETAIL
Material: UL Nylon 66 (PA66)
Flame retardant：UL 94-V2
Temperature range: -40℃ ~ 85℃
Color: Black / Natural / Other special colors are available
Packing: 100pcs/Bag
RoHS Compliant

ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
KM-170 6.8~7.2 4.5 1.8-30 15 33 100
　 　 　 　 　 　 　 　

ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-110 4.8 2.2 28 max. 8 18 100
　

ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-130ST 6.4 2.8 25 max. 22 50 100
　 　 　 　 　 　 　 　


ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-115 7.0 0.6-2.6 1.6-18 15 34 100
　 　 　 　 　 　 　 　


ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-160 7.0 0.6-3.3 1.8-40 15 33 100
　 　 　 　 　 　 　 　

ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-172 7 x 12 0.7-2.6 1.6-40 15 33 100
　 　 　 　 　 　 　 　

ITEM Hole Dimension Board Thickness Bundle Dia. Tensile Strength (min.) Packing
mm mm mm kgs lbs pcs/Bag
GPM-175 7 x 12 0.6-3.3 1.6-40 15 33 100
　 　 　 　 　 　 　 　
