Cable Accessories

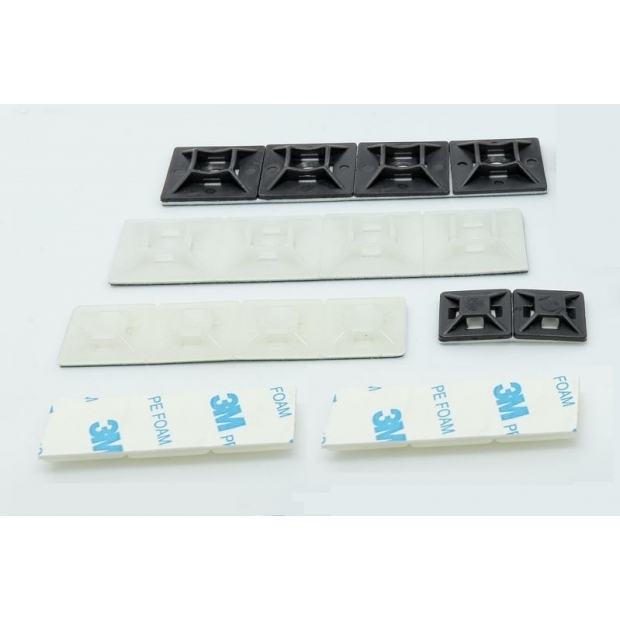

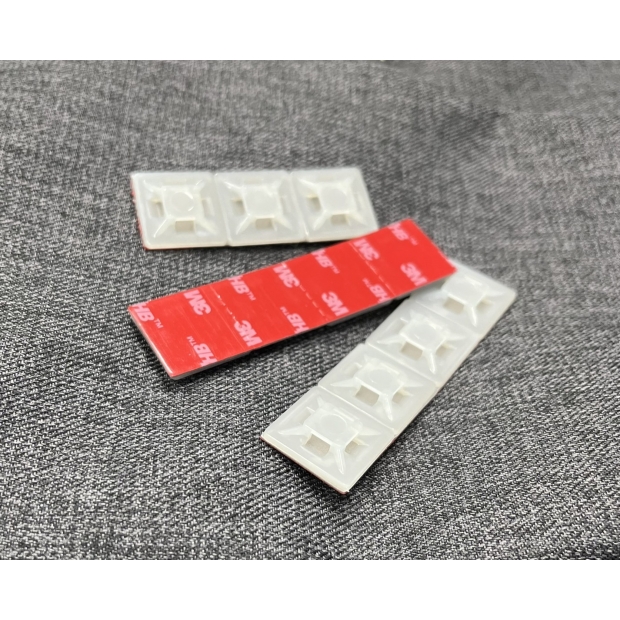

Self-Adhesive Tie Mount

Self-Adhesive Tie Mount

Cable Tie can be inserted from any of the 4 ways orientation tie.
Adhesive backing attaches to virtually any flat surface.
  • 粘式固定座.jpg
  • 無塵室用固定座 Clean Room.jpg
DETAIL
Mount Material: UL Nylon 66 (PA66)
Mount Flame Retardant:UL 94-V2
Mount Temperature Range: -40℃ ~ 85℃
Mount Color: Black / Natural / Other special colors are available
Adhesive Back: 3M 1600-T   PE Foam Tape
                          Green Color - EVA Foam Tape
Other adhesive item # is also available.
Packing: 100pcs/Bag
RoHS Compliant

DIMESIONS mm(inch)
ITEM NO. Length(L) Width(W) Height(H) Hole  Tie Width (T)
GMB-4A 19.0(0.75) 19.0(0.75) 4.2(0.17) None 4.0 (0.16)
GMB-4AM 21.8(0.85) 21.8(0.85) 4.2(0.17) None 4.8(0.19)
GMB-4AS 28.3(1.11) 28.3(1.11) 5.7(0.22) 5.0(0.20) 5.0(0.20)
