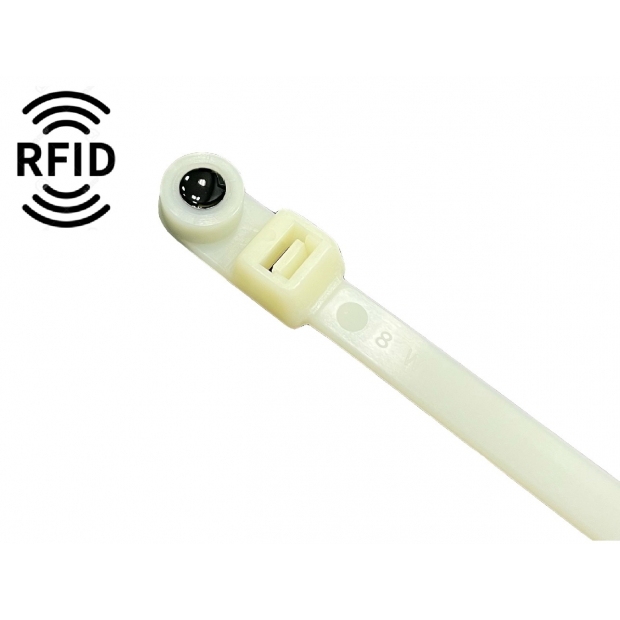

RFID Cable Tie

RFID Cable Tie

The RFID components are securely encapsulated inside, it is easier to integrate RFID into applications in retail store management and various industries,
RFID application-1.jpg
/
RFID TIE.jpg
/
  • RFID application-1.jpg
  • RFID TIE.jpg
DETAIL

Introduction

Cable ties/Wire ties are very common in our daily lives.
Since the RFID components are securely encapsulated inside, it is easier to integrate RFID into applications in retail store management and various industries,
for example. logistics、transportation and warehousing、animal husbandry、clothing industry、medical identification.
In addition, RFID cable ties are also used in the automotive industry to identify tools and assist in assembly, such as shackles and cranes

Available IC
Ntag 213, 215, 216 / ICODE series / Ucode 8, others upon request

Date Sheet
Item Specification
Operating Frequency 13.56 MHz or 860MHz-960MHz
Material Nylon + Epoxy
Storage Temperature -25ºC to +100ºC
Operating Temperature -25ºC to +85ºC
Operating Distance Depends on reader design
Dimension L 160 x W 3.6mm
L 205 x W 4.8 mm
L 200 x W 7.6mm
L 370 x W 7.6 mm

Application
