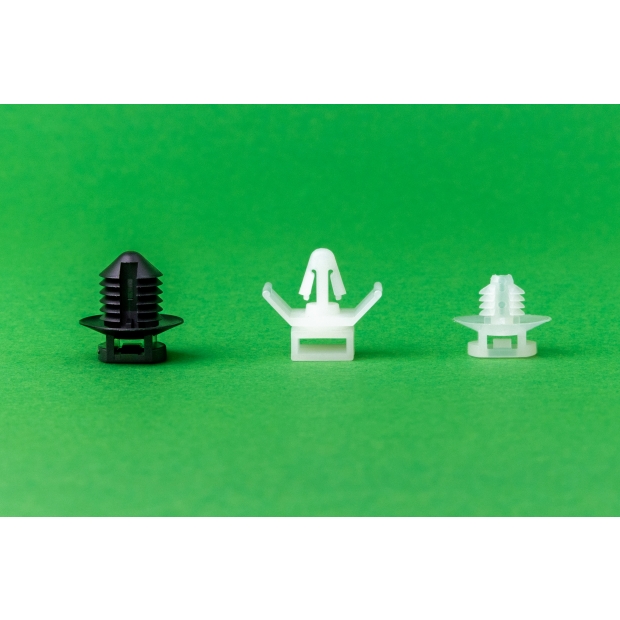

Nylon Push Tie Mount

Nylon Push Tie Mount

The tie mount is inserted into the chassis and insert the cable tie into the mount for bundling cables.
DETAIL
Material: UL Nylon 66 (PA66)
Flame Retardant:UL 94-V2
Temperature Range: -40℃ ~ 85℃
Color: Black / Natural / Other special colors are available
Packing: 100pcs/Bag
RoHS Compliant



DIMENSIONS mm(inch)
ITEM NO. A B C D Hole Size Panel Thickness
JS-0462 5.0(0.20) 1.2(0.05) 18.6(0.73) 18.0(0.7) 9.7~10mm 0.8~5.0mm

------------------------------------------------------------------------------------------
