  1. Cable Duct
Wire Duct

Wire Duct

The wire duct can be fingers removal without any tools during installation.
All sizes can be Slot or Solid.

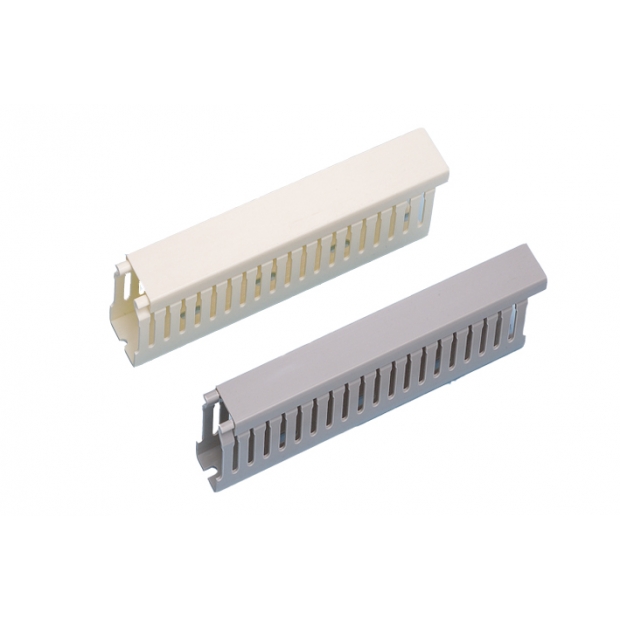

Wire Duct-1.jpg
/

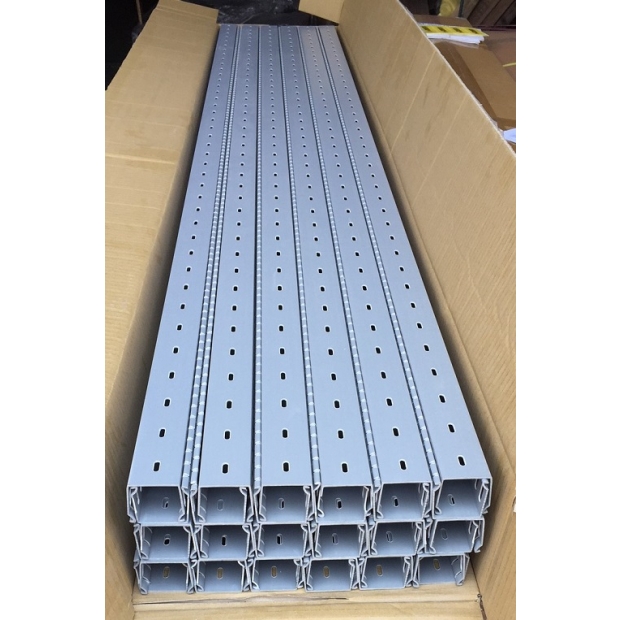

Wire Duct.jpg
/
  • Wire Duct-1.jpg
  • Wire Duct.jpg
DETAIL
Material : PVC
Flame retardant : UL 94-V0
Color : Gray, Ivory and White
RoHS Compliant

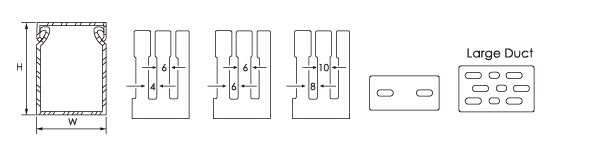

ITEM NO. Slot Hole Size Size (WxH) Length
Solid Slot 4mm 6mm 8mm Width x Height (mm) Meter
SD1525 WD1525 v 　 v 15 x 25 1.7 Meters
or
2 Meters
SD2525 WD2525 v v v 25 x 25
SD2530 WD2530 v 　 v 25 x 30
SD2545 WD2545 v v v 25 x 45
SD2565 WD2565 v v v 25 x 65
SD3333 WD3333 v v v 33 x 33
SD3345 WD3345 v v v 33 x 45
SD3365 WD3365 v v v 33 x 65
SD33100 WD33100 　 　 v 33 x 100
SD4040 WD4040 v v v 40 x 40
SD4060 WD4060 v   v 40 x 60
SD4080 WD4080 v 　 v 40 x 80
SD4545 WD4545 v v v 45 x 45
SD4565 WD4565 v v v 45 x 65
SD5025 WD5025 　   　 50 x 25
SD5050 WD5050 v v v 50 x 50
SD50100 WD50100 v 　 v 50 x 100
SD6060 WD6060 v v v 60 x 60
SD6080 WD6080 v v v 60 x 80
SD6545 WD6545 v v v 65 x 45
SD6565 WD6565 v v v 65 x 65
SD70100 WD70100 　 　 v 70 x 100
SD7264 WD7264     v 72 x 64
SD7575 WD7575 　 　 v 75 x 75
SD8060 WD8060 v 　 v 80 x 60
SD8080 WD8080 v 　 v 80 x 80
SD10050 WD10050 　 　 v 100 x 50
SD10060 WD10060 v 　 v 100 x 60
SD100100 WD100100 　 　 v 100 x 100
SD15060 WD15060 　 　 　 150 x 60
SD15075 WD15075 　 　 v 150 x 75
SD150100 WD150100 　 　 v 150 x 100
SD200100 WD200100 　 　 v 200 x 100
SD300100 WD300100 　 　   300 x 100
