Splicing Connectors

Splicing Connectors

Good performance in Telecom industry.
Make a clean, solid and rapid connection of your wires to keep your communication lines free of noise.
Also are available to handle a wide range of conductor sizes and allows you to handle higher pairs wire.

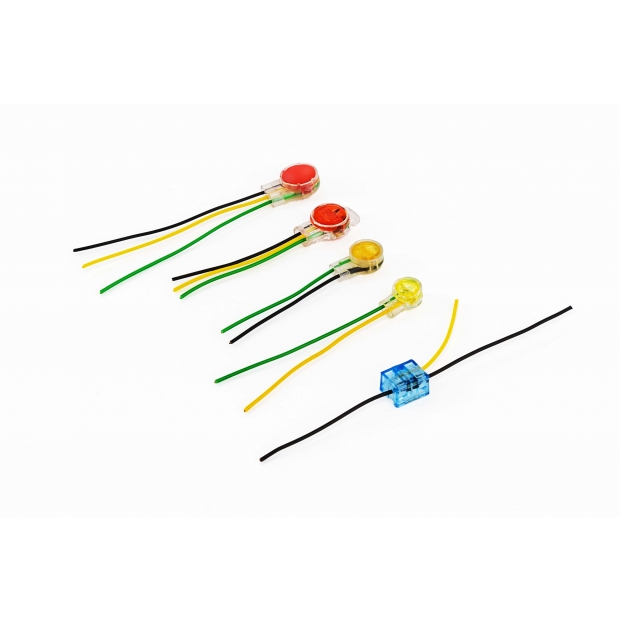

splicing connector _2_.JPG
/
IDC connector.jpg
/

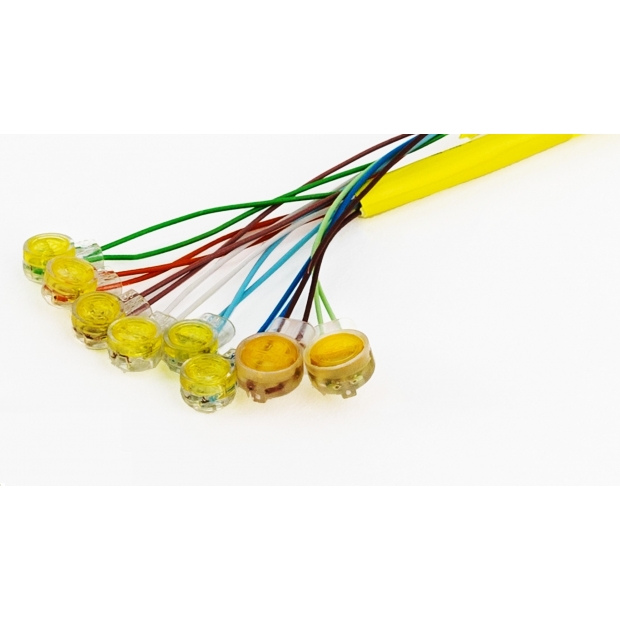

UY UY2 connection.jpg
/
  • splicing connector _2_.JPG
  • IDC connector.jpg
  • UY UY2 connection.jpg

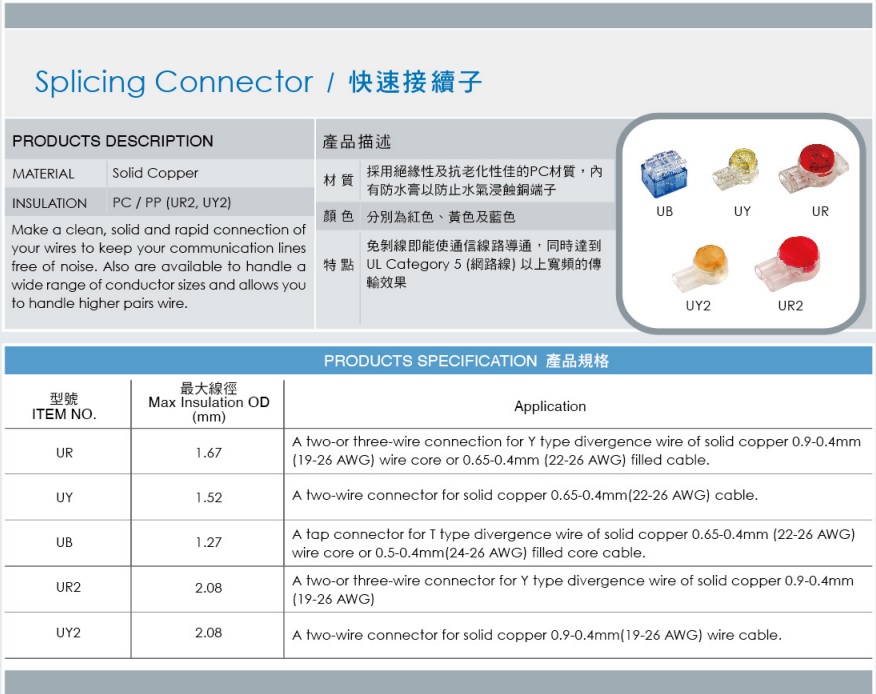

DETAIL
Sleeve material: Solid Copper
With gel filled for moisture resistance
Packing: 100pcs/Box; 10,000pcs/ Carton
ROHS Compliant

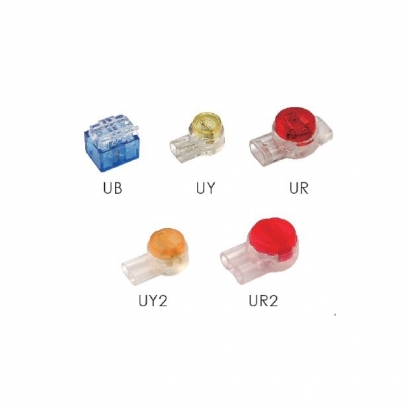

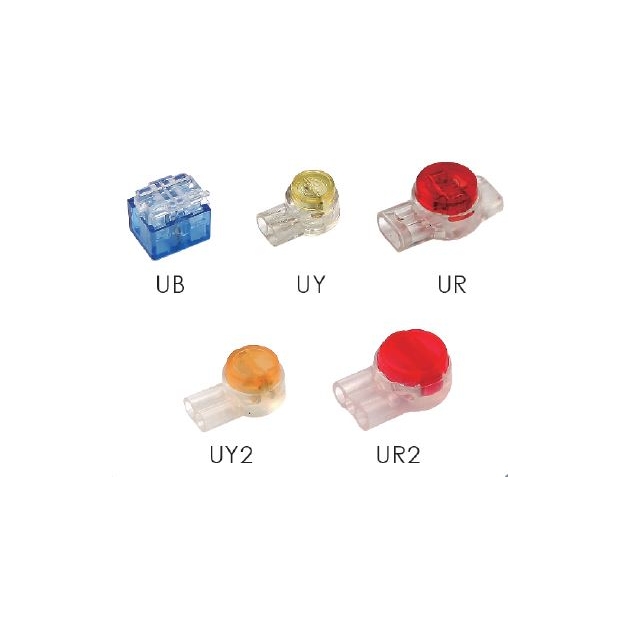

ITEM NO. Insulation Material  Max Insulation OD Application Color
mm
UY PC 1.52  A two-wire connector for solid copper 0.65~0.4mm (22~26AWG) cable YELLOW
UR PC 1.67  A two- or three-wire connection for Y type divergence wire of solid copper 0.9~0.4mm (19~26AWG) wire core or 0.65~0.4mm (22~26AWG) filled cable RED
UB PC 1.27  A tap connector for T type divergence wire of solid copper 0.65~0.4mm (22~26AWG) wire core or 0.5~0.4mm (24~26AWG) filled core cable BLUE
UY2 PP 2.08  A two-wire connector for solid copper 0.9-0.4mm (19-26AWG) wire cable YELLOW
UR2 PP 2.08  A two-or three-wire connector for Y type divergence wire of solid copper 0.9-0.4mm (19-26AWG)7.6 RED
