Flame retardant：UL 94-V2
Temperature range: -40℃ ~ 85℃
Color: Black / Natural / Other special colors are available
Packing: 100pcs/Bag
RoHS Compliant

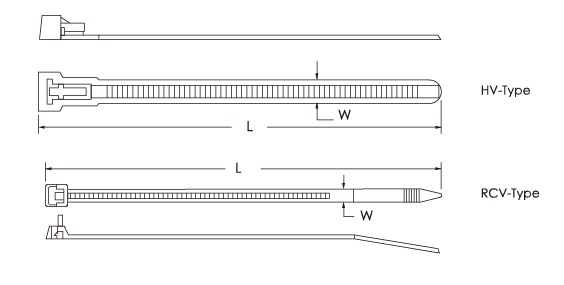

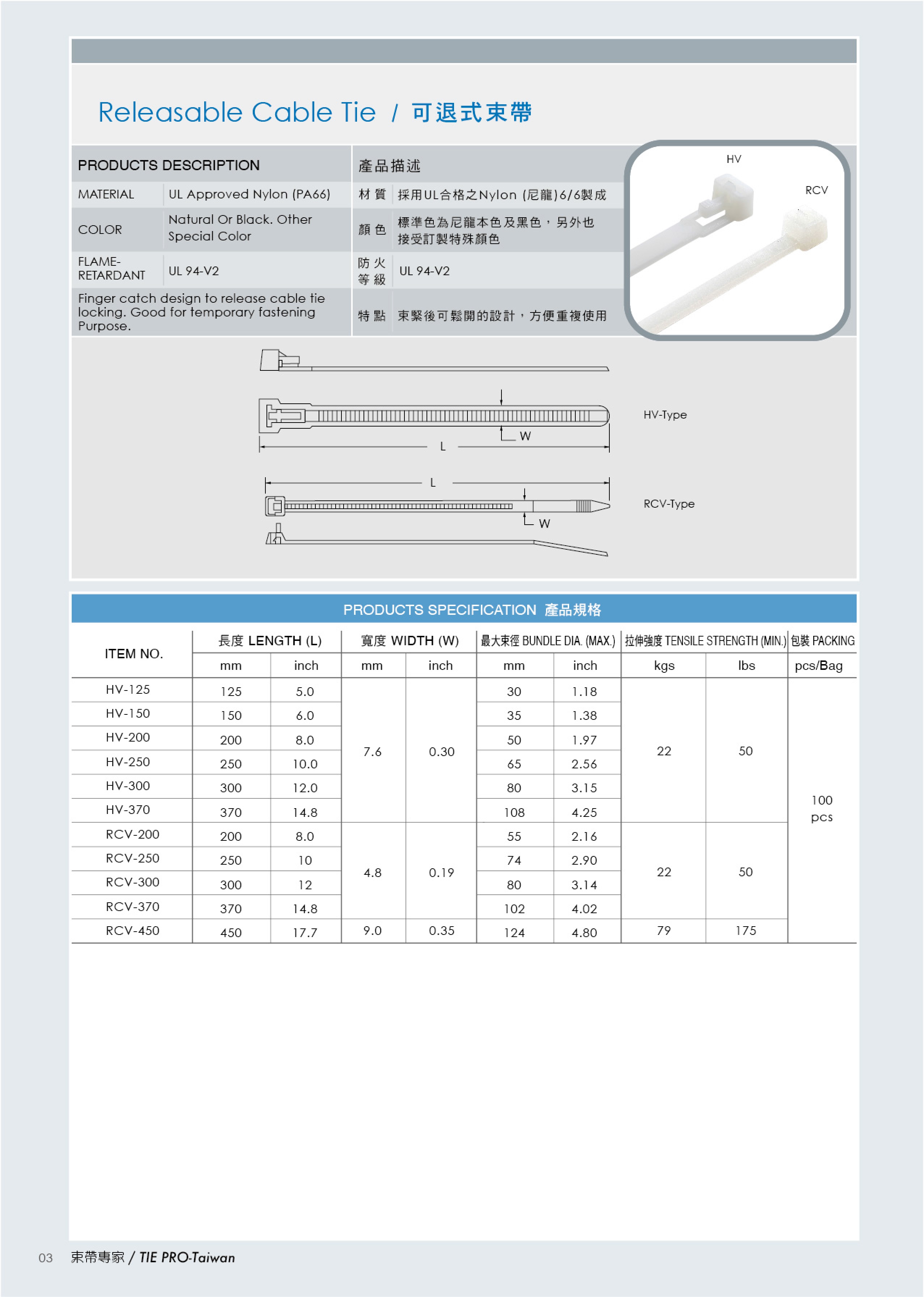

| ITEM NO. | LENGTH (L) | WIDTH (W) | BUNDLE DIA. (max.) | TENSILE STRENGTH (min.) | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| HV-125 | 125 | 5.0 | 7.6 | 0.30 | 30 | 1.2 | 22 | 50 |
| HV-150 | 150 | 6.0 | 35 | 1.4 | ||||
| HV-200 | 200 | 8.0 | 50 | 2.0 | ||||
| HV-250 | 250 | 10.0 | 65 | 2.6 | ||||
| HV-300 | 300 | 12.0 | 80 | 3.2 | ||||
| HV-370 | 370 | 14.8 | 108 | 4.3 | ||||
| RCV-200 | 200 | 8.0 | 4.8 | 0.19 | 55 | 2.2 | 22 | 50 |
| RCV-250 | 250 | 10.0 | 74 | 2.9 | ||||
| RCV-300 | 300 | 12.0 | 80 | 3.1 | ||||
| RCV-370 | 370 | 14.8 | 102 | 4.0 | ||||
| RCV-450 | 450 | 17.7 | 9 | 0.35 | 124 | 4.8 | 79 | 175 |
Size list download
