Flame Retardant：UL 94-V2
Temperature Range: -40℃ ~ 85℃
Color: Black / Natural / Other special colors are aviable
Packing: 100pcs/Bag
RoHS Compliant

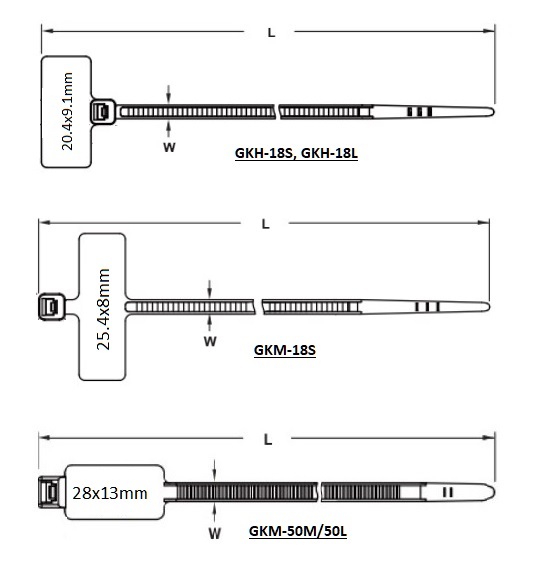

| ITEM NO. | LENGTH (L) | WIDTH (W) | BUNDLE DIA. (max.) | TENSILE STRENGTH (min.) | ||||
| mm | inch | mm | inch | mm | inch | kgs | lbs | |
| GKH-18S | 112 | 4.4 | 2.5 | 0.10 | 18 | 0.72 | 8 | 18 |
| GKH-18L | 210 | 8.3 | 50 | 2.00 | ||||
| GKM-18S | 100 | 4.0 | 18 | 0.72 | ||||
| GKM-50M | 200 | 8.0 | 4.8 | 0.19 | 50 | 2.00 | 22 | 50 |
| GKM-50L | 300 | 11.8 | 76 | 2.99 | ||||
| GKM-50L1 | 370 | 14.5 | 105 | 4.13 | ||||
Size list download
