Flame retardant：UL 94-V2
Temperature range: -25℃ ~ 85℃
Color: Black / Natural / Other special colors are aviable
Packing: 100pcs/Bag or 1000pcs/Bag
UL & RoHS Compliant

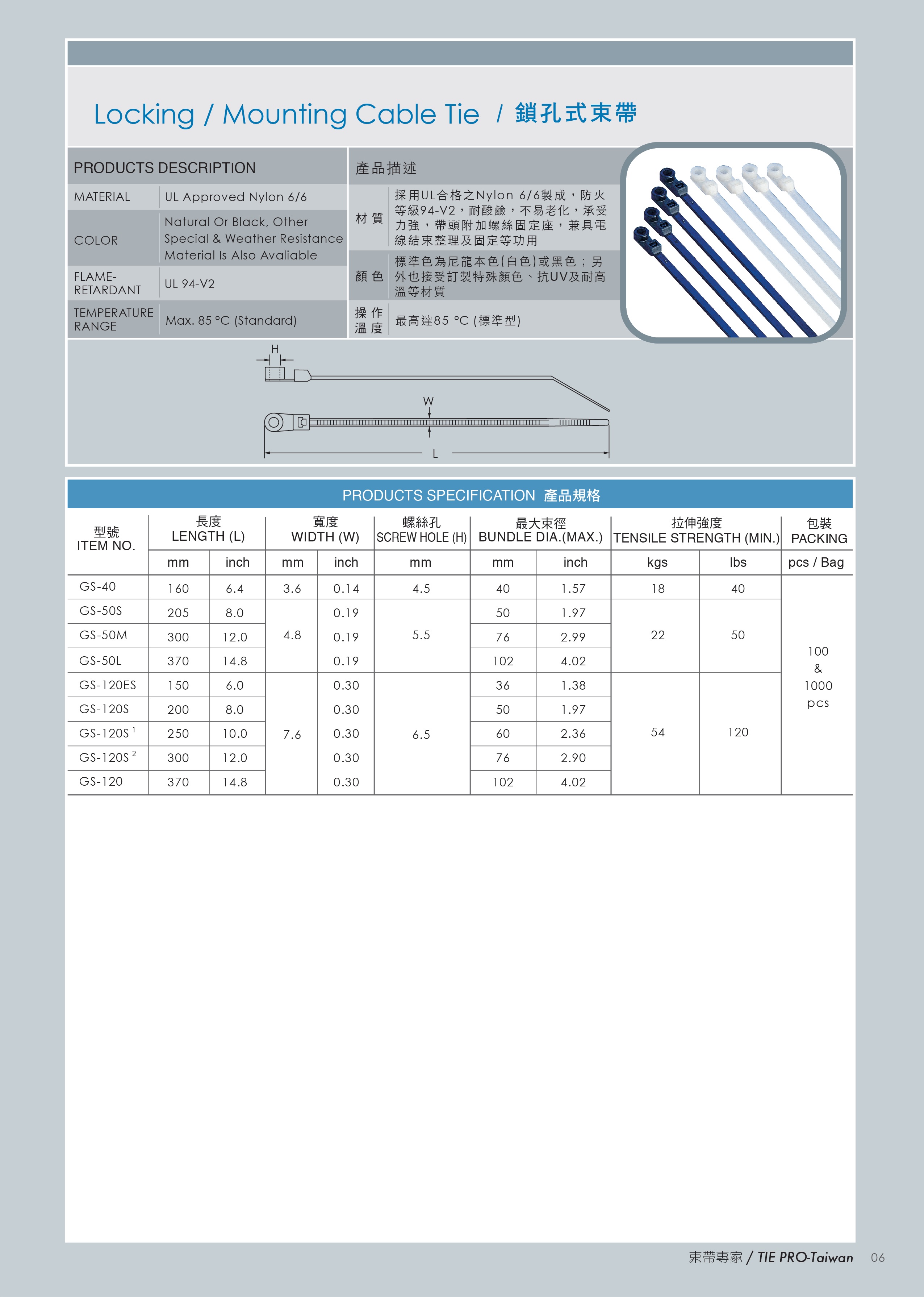

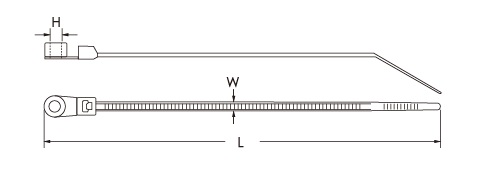

| ITEM NO. | LENGTH (L) | WIDTH (W) | SCREW HOLE(H) | BUNDLE DIA. (max.) | TENSILE STRENGTH (min.) | ||||
| mm | inch | mm | inch | mm | mm | inch | kgs | lbs | |
| GS-40 | 160 | 6.4 | 3.6 | 0.14 | 4.50 | 40 | 1.57 | 8 | 18 |
| GS-50S | 205 | 8.0 | 4.8 | 0.19 | 5.50 | 50 | 1.97 | 22 | 50 |
| GS-50M | 300 | 12.0 | 76 | 2.99 | |||||
| GS-50L | 370 | 14.8 | 102 | 4.02 | |||||
| GS-120ES | 150 | 6.0 | 7.6 | 0.30 | 6.50 | 36 | 1.38 | 54 | 120 |
| GS-120S | 200 | 8.0 | 50 | 1.97 | |||||
| GS-120S1 | 250 | 10.0 | 60 | 2.36 | |||||
| GS-120S2 | 300 | 12.0 | 76 | 2.90 | |||||
| GS-120 | 370 | 14.8 | 102 | 4.02 | |||||
Size List Download
