Flame Retardant：UL 94-V2
Temperature Range: -40℃ ~ 85℃

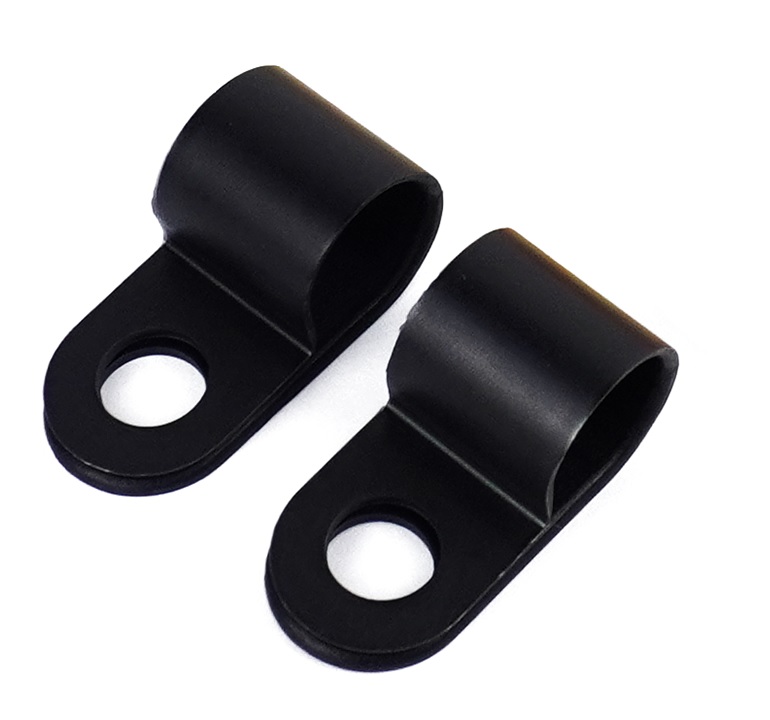

Color: Black / Natural / Other special colors are available
Packing: 100pcs/Bag or 1000pcs/Bag
RoHS Compliant

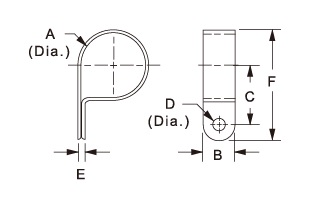

| DIMESIONS mm(inch) | ||||||
| ITEM NO. | A | B | C | D | E | F |
| 1/8(S) | 3.2(0.13) | 9.5(0.37) | 8.3(0.33) | 5.2(0.21) | 2.6(0.10) | 18.2(0.72) |
| 1/8 | 3.2(0.13) | 13.2(0.54) | 8.3(0.33) | 5.2(0.21) | 2.6(0.10) | 18.2(0.72) |
| 3/16 | 4.8(0.19) | 9.7(0.38) | 10.5(0.41) | 4.6(0.18) | 2.6(0.10) | 19.8(0.78) |
| 1/4 | 6.3(0.25) | 9.7(0.38) | 10.5(0.41) | 5.2(0.21) | 2.6(0.10) | 21.0(0.84) |
| 5/16 | 7.6(0.30) | 9.7(0.38) | 12.0(0.47) | 4.8(0.19) | 2.6(0.10) | 22.8(0.91) |
| 3/8 | 9.3(0.37) | 9.7(0.38) | 12.5(0.49) | 4.8(0.19) | 2.6(0.10) | 22.8(0.91) |
| 3/8(W) | 9.5(0.37) | 12.7(0.50) | 13.4(0.52) | 5.3(0.20) | 2.6(0.10) | 26.3(1.04) |
| 1/2 | 12.6(0.50) | 12.7(0.50) | 15.0(0.59) | 5.2(0.21) | 2.6(0.10) | 29.0(1.16) |
| 5/8 | 15.8(0.62) | 12.0(0.47) | 18.2(0.72) | 4.6(0.18) | 2.6(0.10) | 34.4(1.35) |
| 3/4 | 19.4(0.76) | 12.0(0.47) | 18.2(0.72) | 5.3(0.20) | 2.6(0.10) | 35.0(1.38) |
| 1 | 25.4(1.00) | 12.0(0.47) | 22.0(0.87) | 4.6(0.18) | 2.6(0.10) | 43.0(1.69) |
| 1-1/8 | 28.6(1.13) | 12.7(0.50) | 21.4(0.84) | 4.6(0.18) | 2.6(0.10) | 42.3(1.67) |
| 1-1/4 | 31.8(1.25) | 12.7(0.50) | 26.2(1.03) | 4.6(0.18) | 2.6(0.10) | 46.2(1.82) |
| 1-1/2 | 36.7(1.44) | 12.7(0.50) | 30.0(1.18) | 5.1(0.20) | 2.6(0.10) | 50.0(1.97) |
Size list download
