Flame retardant : UL 94-V2
Sleeve material: Tin-plated cooper or Aluminum
Temperature range : 300 V Max. / 105°C (221°F)
Packing : 1000pcs/Bag
UL & ROHS Compliant

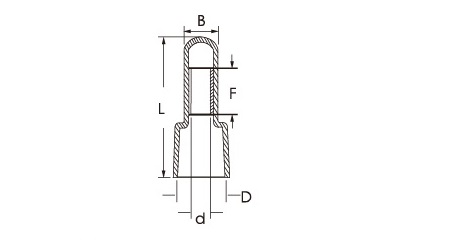

| ITEM NO. | WIRE RANGE AWG/mm2 | DIMENSIONS mm(inch) | ||||
| B | d | D | F | L | ||
| CE-1 | 22~18 AWG 1.25mm2 |
5.0(0.197) | 2.6(0.102) | 6.2(0.244) | 6.7(0.263) | 18.1(0.713) |
| CE-2 | 22~14 AWG 2.0mm2 |
5.6(0.220) | 3.1(0.118) | 7.9(0.311) | 7.2(0.283) | 20.0(0.787) |
| CE-5 | 22~10 AWG 5.5mm2 |
7.3(0.287) | 4.1(0.157) | 10.5(0.413) | 8.0(0.315) | 25.3(0.996) |
| CE-8 | 26~10 AWG 8.0mm2 |
9.5(0.374) | 5.3(0.157) | 12.4(0.488) | 11.0(0.433) | 27.7(1.091) |
